Automatic Feed Production Line For Poultry Pets Farms And Feed Mills

Production Needs Analysis
‌Define Production Scale‌
Small farms (daily output <1 ton): Prefer semi-automatic or modular equipment, such as a crushing-mixing and pelleting machine, to reduce initial investment costs.
Medium-sized farms (daily output 1-5 tons): Require automated batching systems and independent cooling and packaging units to enhance standardized production capacity.
Large feed mills (daily output >5 tons): Opt for fully automated production lines with intelligent control systems and expansion modules for extrusion/spraying to meet scaled production needs.





<table border="1" cellpadding="0" cellspacing="0" class="table" open="" sans",="" poppins,="" oswald,="" "noto="" montserrat,="" arial,="" sans-serif;="" font-size:="" 16px;="" width:="" 650px;="" overflow-wrap:="" break-word;"="" style="font-family: Roboto; font-size: 12px; margin: 0px; padding: 0px; -webkit-tap-highlight-color: transparent; border-collapse: collapse; color: rgb(17, 17, 17); overflow-wrap: break-word;">

Capacity 15-20t/h Range of application large commerical feed factory,could make chicken,sheep,cow,shrimp feed Workers requirments 4-5 people Shipment requirments 6*40ft container Product advantages Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm. size for whole line According to land size and layout



Pulverizer: The water-drop pulverizer can process fine feeds such as corn and soybean meal, and a dedicated model is available for straw.
Cleaning Equipment: The magnetic separator must filter out metal impurities to ensure the safety of subsequent equipment.
Mixer: The twin-shaft paddle mixer achieves high mixing uniformity and supports both batch and continuous production.
Pellet Mill: The ring die pelletizer must be equipped with an alloy steel die with an adjustable gap between the rollers and the die.
Cooler: The countercurrent cooling system reduces pellet temperature and prevents clumping and mold.
Packaging Machine: Automated weighing and packaging.



Technical Advantages:
1. Efficient Automation: A centralized control system automates the entire process, reducing manual intervention and improving production efficiency.
2. Flexible Adaptability: A modular design allows for rapid adjustment of recipes and production specifications to meet the needs of a variety of products, including concentrated feed and complete feed.
3. Energy Saving and Environmental Protection: Equipped with a pulse dust collector and energy recovery technology, it reduces dust emissions and energy consumption.
4. Precise Quality Control: A precise metering and batching system and real-time quality monitoring equipment ensure stable feed nutritional ratios and a high product quality rate.



Finished Product Display







For more information on process design, equipment layout, plant construction plan, single machine equipment quotation, turnkey quotation, etc., please feel free to contact us.



FAQ

Q: Are you a factory?
A: Yes, we are. We have extensive production experience. Our equipment undergoes multiple quality inspections before shipment to ensure quality.
Q: Are there any discounts on equipment?
A: Because we are a factory, we can offer lower prices.
Q: How do I choose the right equipment for my needs?
A: We will match you with the most suitable production line equipment based on your specific needs.

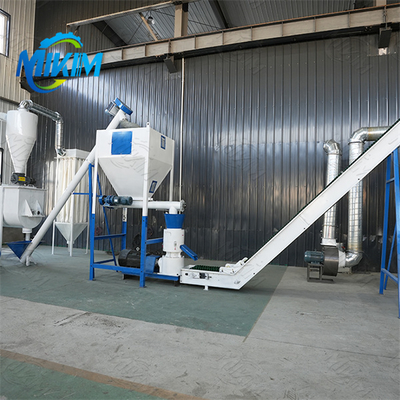

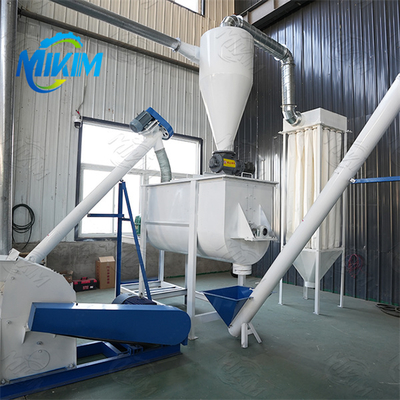

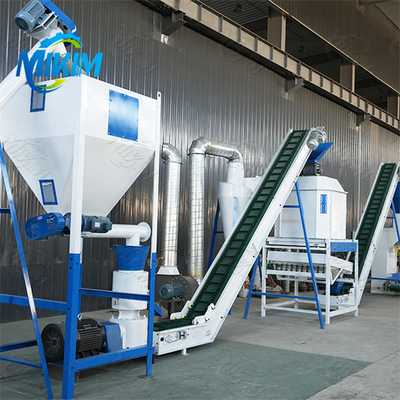

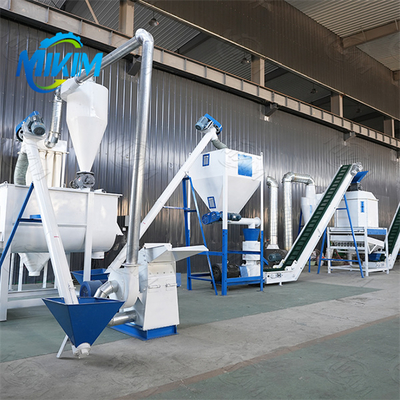

Equipment Photos
