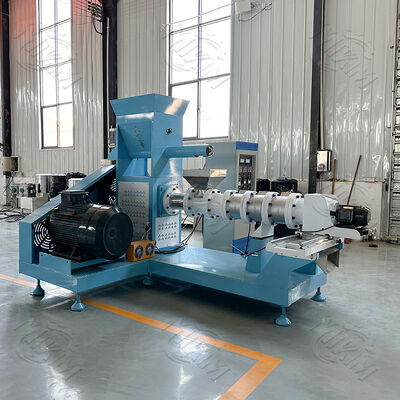

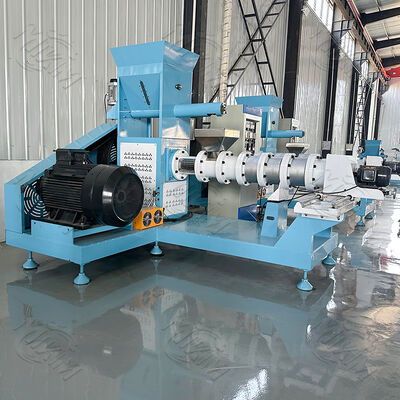

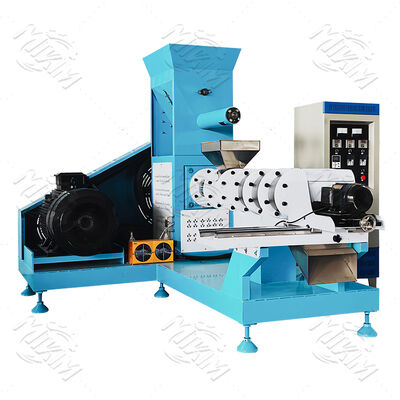

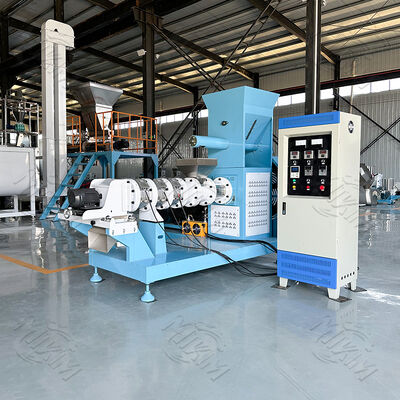

Pet Food Extruder Machine Overview
This floating fish feed extruder machine is designed for processing various animal feeds including pet food for dogs and cats, bird feed, piglet feed, frog feed, and both sinking and floating aquatic feeds for fish. Utilizing advanced technology to meet growing pet food market demands, this equipment processes raw materials such as maize, fish powder, meat powder, and food additives through mixing, extruding, roasting, and flavoring to produce high-quality puffed pet food.
Material Requirements
Raw Material Specifications
- Compatible materials: Corn, Wheat, Soybean, Grain, Bone powder, etc.
- Raw materials must be ground to 60-80 mesh fineness
- Optimal moisture content: 20-30%
- Final pellet diameter range: 0.9-12mm
- Pellet length adjustable via cutting knife control
Pellet Customization Options
Final pellet sizes range from 0.9-12mm according to specific requirements. Different pellet sizes are achieved by simply changing the molds. Various pellet shapes are available for customization to meet diverse feeding needs.
Final Product Varieties
Customized shapes available to suit different animal feeding requirements and preferences.
Technical Specifications
| Model |
Capacity (kg/h) |
Main Motor (kw) |
Feeder Motor (kw) |
Cutter Motor (kw) |
Screw Diameter (mm) |
Machine Size (mm) |
Weight (kg) |
| DGP-40 | 40-50 | 5.5 | 0.4 | 0.4 | φ40 | 1.36*1.3*0.85 | 320 |
| DGP-60 | 120-150 | 15 | 0.4 | 0.4 | φ60 | 1.36*1.33*0.86 | 420 |
| DGP-70 | 200-250 | 18.5 | 0.4 | 0.4 | φ70 | 1.36*1.33*0.86 | 550 |
| DGP-80 | 300-350 | 22 | 1.5 | 0.55 | φ80 | 2.3*1.7*1.4 | 720 |
| DGP-90 | 400-450 | 30 | 1.5 | 0.55 | φ90 | 2.3*1.8*1.4 | 1100 |
| DGP-100 | 500 | 37 | 1.5 | 1.5 | φ100 | 2*2.8*1.2 | 1500 |
| DGP-120 | 600-700 | 55 | 1.5 | 1.5 | φ120 | 2.2*2.9*1.2 | 1800 |
| DGP-135 | 800-900 | 75 | 1.5 | 2.2 | φ135 | 2.2*3.1*1.37 | 2000 |
| DGP-160 | 1000-1200 | 90 | 2.2 | 2.2 | φ160 | 2.3*3.15*1.38 | 2500 |
| DGP-200 | 1800-2000 | 132 | 3 | 3 | φ200 | 2.35*3.45*1.65 | 3200 |
Manufacturer Profile
Tianjin Mikim Technique Co., Ltd. is a high-tech enterprise integrating scientific research, design, manufacture, installation, commissioning, and after-sales service. With 35 years of dedicated experience in the feed machinery industry, we have obtained multiple certifications including CE and ISO standards.
Our primary focus includes two main fields: feed pellet machine production lines (hammer mill, mixer, conveyor, feed pellet machine, cooling & vibration system, packing and sealing) and feed extruder production lines (mixer, twin screw extruder machine, dryer, drum seasoning machine, cooling towers, packing machine).
We produce high-quality, competitively priced equipment exported worldwide, enjoying an excellent reputation. Our comprehensive after-sales service system ensures customers receive complete operational support and troubleshooting assistance.
